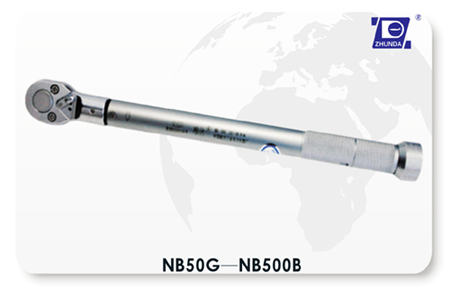

- NB英制系列扭矩扳手
- NB 產品介紹
序號 | 型號 | 范圍 | 分度值(N.m) | 單位 | 總長 (mm) | 有效力臂 (mm) | 重量 (Kg) | 方榫尺寸 (in) | 開口尺寸 (mm) |
L1 | L2 | ||||||||
1 | NB-5CI | 10-50 | 0.5 | lbf.in | 187 | 120 | 0.18 | 1/4" | 5,5.5,6,7, 8-22 |
2 | NB-10CI | 20-100 | 1 | lbf.in | 200 | 140 | 0.2 | 3/8" | |
3 | NB-22.5C | 4-20 | 0.2 | lbf.ft | 255 | 165 | 0.28 | 3/8" | 8,9,10,11,
12-24 |
4 | NB-22.5CI | 40-200 | 2 | lbf.in | 225 | 165 | 0.28 | 3/8" | |
5 | NB-50C | 10-40 | 0.3 | lbf.ft | 307 | 240 | 0.45 | 3/8" | |
6 | NB-50CI | 120-400 | 4 | lbf.in | 307 | 240 | 0.45 | 3/8" | |
7 | NB-100C | 20-80 | 0.6 | lbf.ft | 420 | 350 | 0.84 | 1/2" | 12,13,14, 15,16-26 |
8 | NB-100CI | 240-800 | 8<, o:p=""> | lbf.in | 420 | 350 | 0.84 | 1/2" | |
9 | NB-180C | 35-140 | 0.5 | lbf.ft | 530 | 430 | 1.48 | 1/2" | 15,16,17, 18,19-36 |
10 | NB-230C | 50-170 | 0.5 | lbf.ft | 670 | 530 | 1.85 | 1/2" | |
11 | NB-300C | 60-200 | 1 | lbf.ft | 680 | 575 | 2.6 | 1/2" | 24,25,26, 27,28-32, 34,36,38, 41,46 |
12 | NB-400C | 90-300 | 1.5 | lbf.ft | 890 | 788 | 3.18 | 3/4" | |
13 | NB-500C | 100-400 | 2 | lbf.ft | 890 | 788 | 3.3 | 3/4" | |
14 | NB-680C | 150-600 | 3 | lbf.ft | 1098 | 980 | 6.8 | 3/4" | |
15 | NB-1000C | 200-760 | 2 | lbf.ft | 1300 | 1180 | 7.5 | 1" | 36,38,41, 46,50,55, 60,65,70, 75 |
16 | NB-1200C | 300-900 | 3 | lbf.ft | 1530 | 1410 | 8.5 | 1" | |
17 | NB-2000C | 500-1500 | 5 | lbf.ft | 1830 | 1710 | 13 | 1" | |
18 | NB-3000C | 600-2250 | 7.5 | lbf.ft | 1500 | 1360 | 25 | 1" |
